HL-1080PAD High Speed Web-Fed Flexo Memo Pad Production Line
Short Description
The HL-1080PAD is a high-speed memo pad making machine by Heli Machinery, integrating web-fed flexo printing, wire saddle stitching, cold adhesive binding, spine liner wrapping and precision trimming in one automated line.
- Web flexo printing— 400 m/min, double-sided 2-color, ±0.1 mm accuracy
- Dual binding modes— Wire saddle stitching (Hohner) + cold adhesive binding
- Full process automation— Paper roll to finished memo pad, 12 integrated processes
- China factory direct— Customizable production line, contact for quote
Technical Specifications
| Parameter | Specification |
| Machine Model | HL-1080PAD |
| Max. Roll Diameter | Φ1270 mm |
| Roll Width | 680 mm – 1080 mm |
| Roll Core Inner Diameter | 3 inches (76 mm) |
| Paper Weight Range | 45 – 100 g/m² |
| Printing Colors | Double-sided 2-color |
| Printing Width | 680 – 1080 mm |
| Printing Circumference | 370 – 450 mm |
| Printing Accuracy | ≤ 0.1 mm |
| Max. Printing Speed | 400 m/min |
| Sheeting Width Range | 680 – 1080 mm |
| Sheeting Circumference Range | 370 – 450 mm |
| Sheeting Accuracy | ≤ 0.1 mm |
| Max. Sheeting Speed | 400 m/min |
| Max. Sheeting Frequency | 1300 cuts/min |
| Counting Range | 6 – 52 sheets per stack |
| Counting Accuracy | ±0 sheet |
| Max. Counting Speed | 60 layers/min |
| Cover Size (Width) | 680 mm × 1080 mm |
| Cover Size (Circumference) | 370 mm × 450 mm |
| Cover Paper Weight | 70 – 300 g/m² |
| Max. Cover Feeding Speed | ≤ 60 sheets/min |
| Trimming Size | 140 mm – 300 mm |
| Max. Trimming Speed | 60 cycles/min |
| Stitching Head Brand | Hohner (Germany) |
| Wire Gauge | 26# – 28# |
| Max. Binding Thickness | ≤ 10 mm |
| Max. Stitching Speed | 40 cycles/min |
| Edge Trimming Size | 140 mm – 300 mm |
| Max. Edge Trimming Speed | 40 cycles/min |
| Cold Adhesive Binding Length | 370 mm – 450 mm |
| Cold Adhesive Binding Height | 140 mm – 300 mm |
| Binding Sheet Range | 10 – 82 sheets |
| Binding Speed | 40 cycles/min |
| Spine Liner Length | 370 mm – 450 mm |
| Spine Liner Height | 140 mm – 300 mm |
| Spine Liner Wrapping Speed | 40 cycles/min |
| Cross Trimming Size | 140 mm – 297 mm |
| Longitudinal Trimming Size | 127 mm – 297 mm |
| Trimming Sheet Range | 10 – 82 sheets |
FAQs
The HL-1080PAD is a memo pad making machine by Heli Machinery that integrates web-fed flexo printing, cross sheeting, collating, wire saddle stitching and/or cold adhesive binding, spine liner wrapping, and precision trimming. It produces finished memo pads, notepads, drawing books and exercise books from paper roll in one continuous automated pass at up to 400 m/min.
Yes. The HL-1080PAD features both wire saddle stitching (Hohner German brand, 26#–28# wire, ≤10mm thickness) and cold adhesive binding (10–82 sheets, 370–450mm length). This makes it one of the most versatile notebook making machines available for export production.

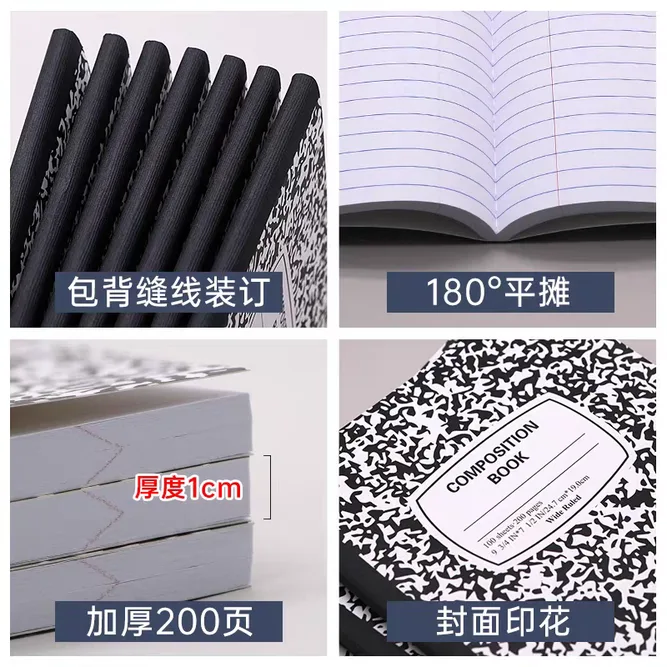

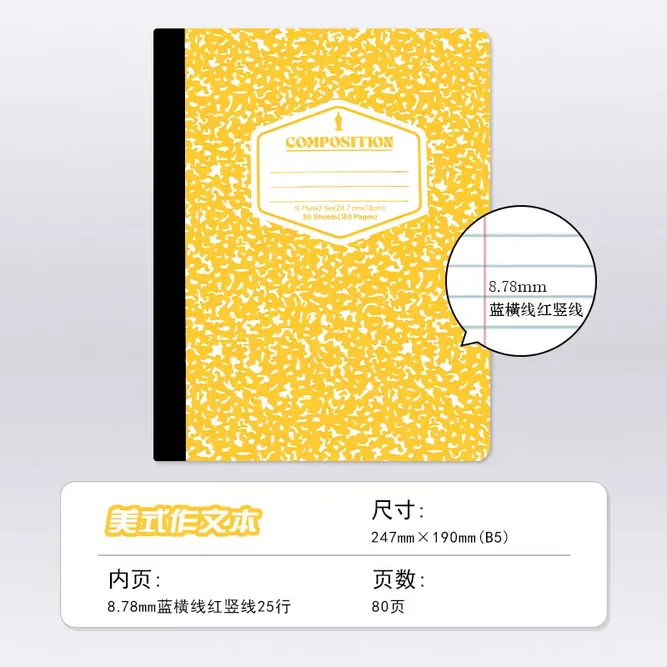

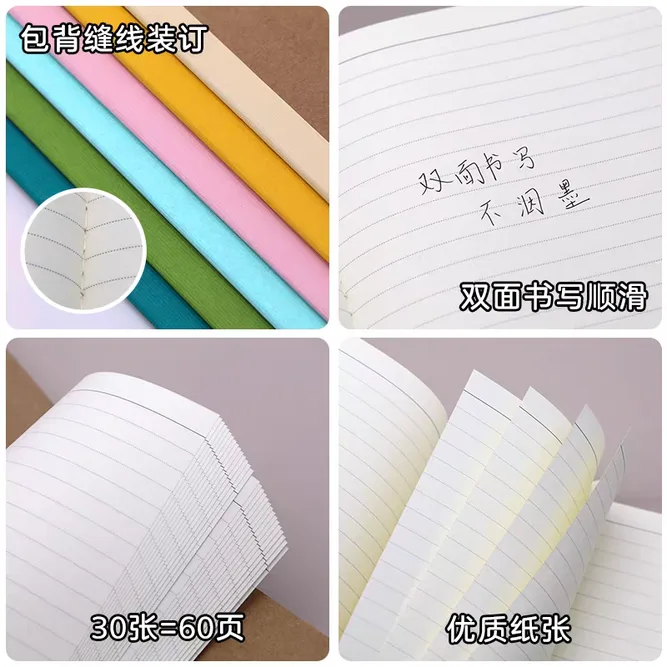

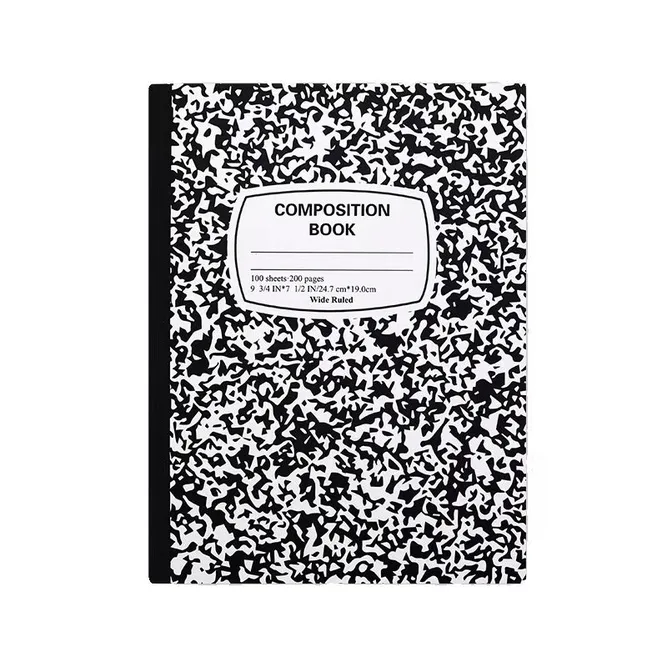

The HL-1080PAD produces lay-flat easy-tear memo pads, notepads, drawing books, draft books, and exercise books. The dual binding method (stitching + cold glue) and adjustable trimming (127–297mm longitudinal) allow flexible product configurations for different market needs.
Yes. As with other Heli Machinery production lines, the HL-1080PAD can be connected to shrink wrapping machines or bagging machines for fully automated packaging. Contact us for integration options.
Heli Machinery is a China-based manufacturer of notebook making machines and memo pad making machines with proven export experience. The HL-1080PAD features imported electrical components from Japan, Germany and Switzerland. Contact us for factory-direct pricing and customized configurations.
