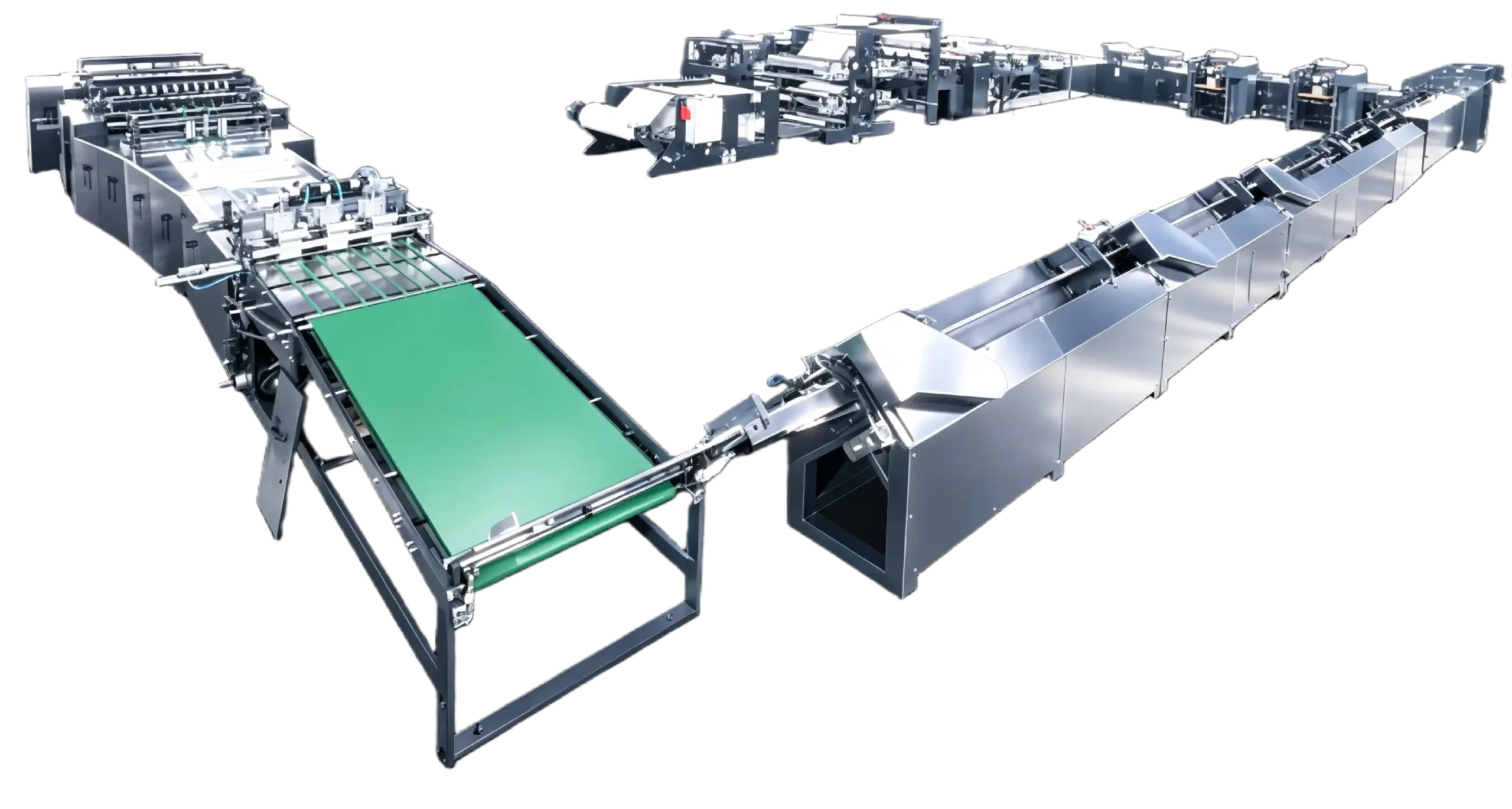

HL-1300 High-Speed Flexographic Cold Package Back Linkage Line
The HL-1300 High-Speed Flexographic Cold Package Back Linkage Line is the latest independently developed flagship product from Heli Machinery. It completes the entire process from reel to finished, counted notebook in one continuous line, with an automation level at the leading domestic and international standard. Featuring cold glue green technology, 180° flat-opening binding, helical gear transmission, servo program control, and automatic gilding, it supports A5, B5, and A4 formats — a premium, future-proof investment for notebook manufacturers.
- Products: A5, B5, A4
- Binding: Cold Glue – 180° Flat Opening
- Printing Structure: Integral Casting + Helical Gear
- Total Power: 50 kW
Product Overview
The HL-1300 High-Speed Flexographic Cold Package Back Linkage Line is the latest product independently developed by Heli Machinery. It completes the entire printing-to-finished-product process in one continuous line, with an automation level at the leading domestic and international standard. This high speed flexographic cold package back line uses cold glue technology for green, environmentally friendly operation, producing notebooks that open a full 180° flat with durable glued spines that don’t lose pages. It handles A5, B5, and A4 formats — a high-value, all-in-one solution delivering intuitive production efficiency and economic return.
The HL-1300’s complete production flow: unwinding → deviation correction → printing → creasing, slitting & folding → rotary cutting → servo page counting → servo horizontal conveying → title page insertion → cover & back cover feeding → conveying into back cover machine → side glue application → inner sheet glue → drying → back strip application → cutting → conveying → automatic gilding → lamination → book positioning → horizontal trimming → one-time cutting → book splitting & two-time cutting → counting collection. The printing department features an integral casting structure with helical gear transmission for faster speeds and higher print quality. Page count and cutting dimensions are adjustable via synchronous gears and servo program control, while the optional zero-speed automatic paper holder enables non-stop reel changes.
Lanxi Heli’s German-origin engineering and continuous innovation deliver this flagship line — helping notebook manufacturers produce premium cold-glue-bound notebooks at scale, with unmatched flat-opening quality, at a competitive China factory price.
Technical Specifications
| Parameter | Specification |
| Model | HL-1300 |
| Max Roll Paper Diameter | 1,270 mm |
| Paper Roll Width | 550–1,200 mm |
| Printing Circumference | 520–790 mm |
| Printing | 2 + 2 (Double Side, Double Color) |
| Max Printing Width | 1,200 mm |
| Printing Speed | 300 m/min |
| Number of Pages | 10–50 (folded 20–100) |
| Inner Page Paper Grams | 60–120 g/m² |
| Max Production Speed | 60 cuts/min |
| Backing Paper Weight | 80–120 g |
| Back Cover & Cover Weight | 125–300 g |
| Back Cover & Cover Length | 520–790 mm |
| Back Cover & Cover Width | 147–300 mm |
| Total Power | 50 kW |
Machine Structure
FAQs
Cold glue technology is a green, environmentally friendly binding method that operates without the high heat and emissions of traditional hot-melt systems. The result: notebooks that open a full 180° flat with durable glued spines that don’t lose pages. This is a critical quality differentiator for premium school and office notebooks. For buyers evaluating perfect binding production line options, cold glue delivers both environmental compliance and superior end-user experience.
The HL-1300 completes the entire process from reel to finished, counted book: unwinding → deviation correction → printing (integral casting, helical gear) → creasing/slitting/folding → rotary cutting → servo page counting → servo horizontal conveying → title page + cover/back cover feeding → side glue and inner sheet glue application → drying → back strip application → cutting → automatic gilding → lamination → book positioning → trimming → cutting and book splitting → counting collection. Optional zero-speed auto paper holder enables non-stop reel changes.
The HL-1300 is optimized for A5, B5, and A4 notebook and book formats, making it highly practical for manufacturers serving diverse markets. Page count and cutting dimensions are adjustable via synchronous gears and servo program control — no mechanical retooling required for format changes. This flexibility makes it ideal for buyers seeking a notebook production line capable of serving school supply, office, and stationery channels simultaneously.
The printing department’s integral casting structure with helical gear transmission delivers faster production speeds and higher print quality compared to traditional spur-gear presses. Helical gears engage gradually, reducing vibration and ensuring smoother roller rotation — resulting in more consistent ink transfer and sharper registration. For buyers comparing high speed flexo printing machine suppliers, this engineering detail directly impacts output quality.
The HL-1300 represents Heli’s latest independent R&D achievement, with automation at the leading domestic and international level. It combines cold glue green technology, servo-driven format adjustment, integral casting printing, helical gear transmission, automatic gilding, and zero-speed paper changing — all in one line. Backed by German-origin engineering and competitive China pricing, it delivers intuitive production efficiency and economic return for buyers seeking a premium, future-proof notebook production investment.
