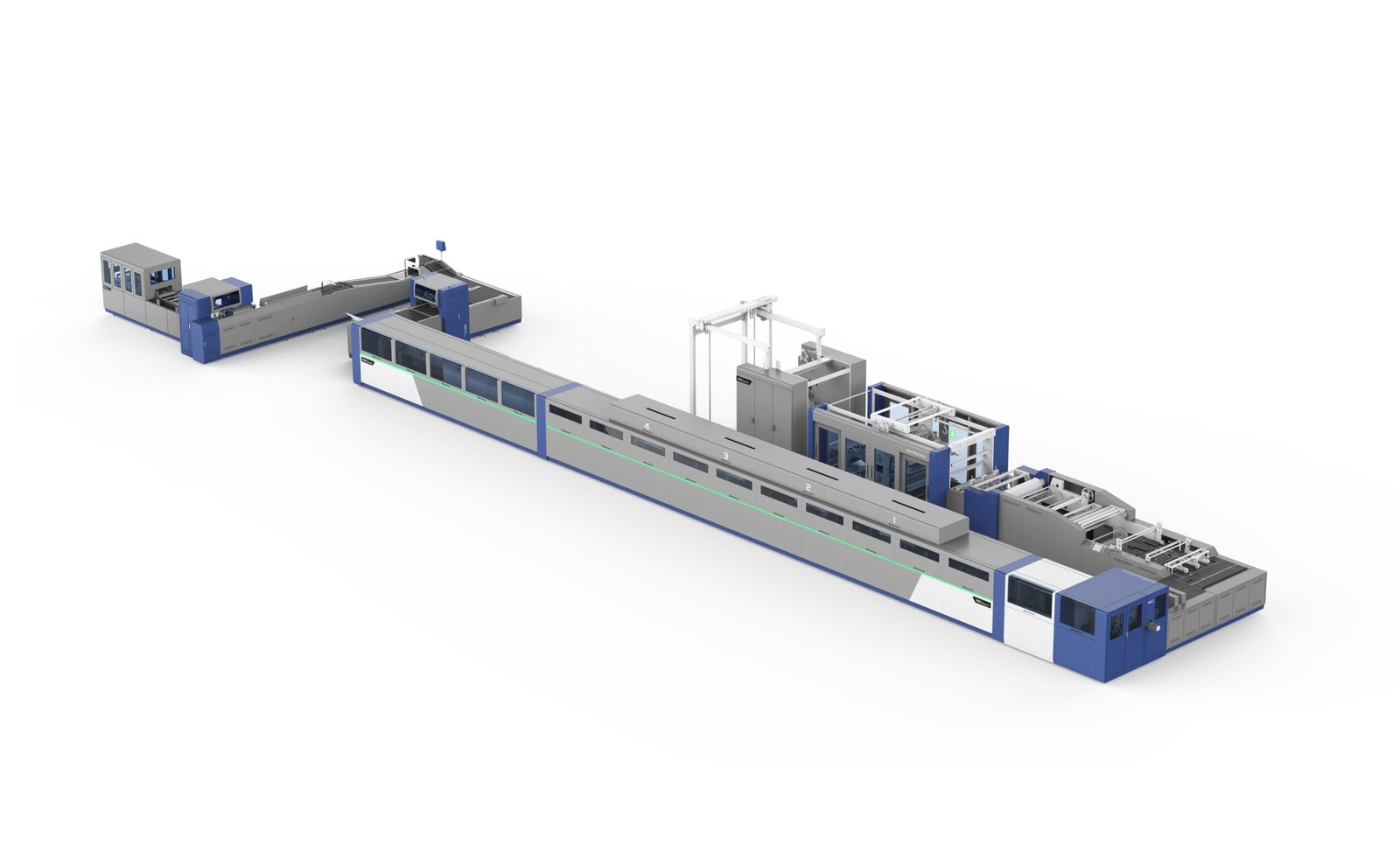

U-TYPE EXERCISE BOOK PRODUCTION LINE
HL-1120BG-2FU
Overview
The HL-1120BG-2FU U-Type Exercise Book Production Line is a fully integrated solution that converts paper rolls into finished exercise books in one continuous workflow. Its innovative U-type layout saves 40% floor space compared to traditional linear lines, making it ideal for factories with space constraints. The line handles roll feeding, double-side flexo printing, cross-cutting, sheet layering, cover application, wire stitching, folding, back planning, and final cutting — delivering 45 finished books per minute.
Key Features
这是标题
Saves 40% floor space
这是标题
High-speed production
这是标题
One continuous workflow
这是标题
Servo-driven precision
这是标题
Real-time monitoring
这是标题
24/7 diagnostics
Technical Specifications
| Model | HL-1120BG-2FU |
| Reel Width | 680-1120mm |
| Printing Speed | 30-300 m/min |
| Max Book Making Speed | 45 times/min |
| Print-Cut Length | 300-760mm |
| Cut Length | 250-450mm |
| Counting | 6-50 sheets |
| Binding Size | 125-225mm |
| Total Power | 32 kW |
| Net Weight | 17,000-17,500 kg |
| Control | Mitsubishi PLC |
| Note | Part 1 and Part 2 can operate independently |
International Brand Components
这是标题
PLC Control
这是标题
Main Motors
这是标题
Controls
这是标题
Bearings
这是标题
Belts
