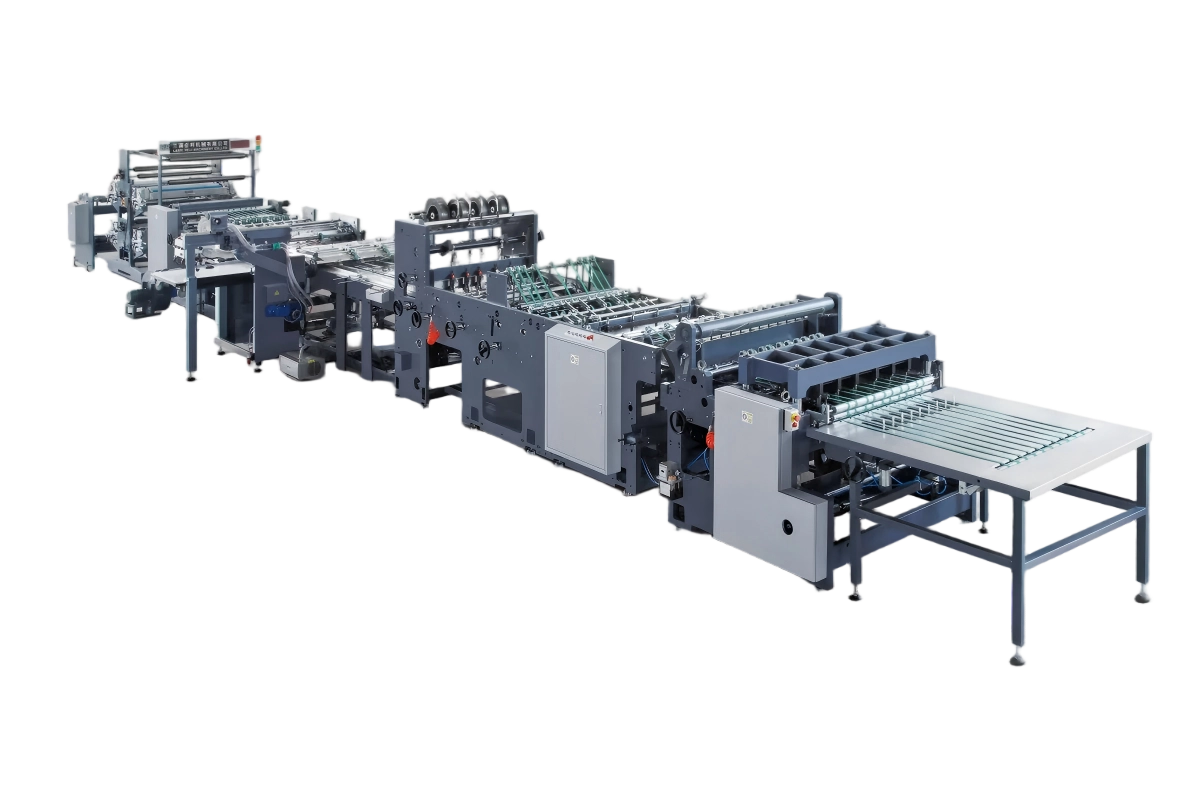

HL-1080GD-2 High Speed Web-Fed Flexo Saddlestitch Binding Production Line
Short Description
The HL-1080GD-2 High-Speed Web-Fed Flexographic Printing Saddlestitching Binding Line is a fully automatic 11-process production line. Prints at 400m/min with double-sided two-color printing and German Hohner stitching heads. For exercise books and notebooks — China factory direct.
- High-speed saddle stitch machine with German Hohner stitching heads — 60 cycles/min binding
- Double-sided two-color flexo printing at 400m/min with ≤0.1mm registration accuracy
- 11 integrated processes: unwinding, printing, slitting, stitching, folding, trimming & delivery
- Ideal exercise book making machine and notebook making machine — China factory direct
Technical Specifications
| Parameter | Specification |
| Max. roll diameter | Φ1270mm |
| Roll width | 680mm-1080mm |
| Roll core inner diameter | 3 inches (76mm) |
| Suitable paper weight | 45-100g/m² |
| Printing color groups | Double-sided 2-color |
| Printing width | 680mm-1080mm |
| Printing circumference | 255mm-600mm |
| Registration accuracy | ≤0.1mm |
| Max. printing speed | 400m/min |
| Slitting width range | 680mm-1080mm |
| Slitting circumference | 255mm-600mm |
| Slitting accuracy | ≤0.1mm |
| Maximum slitting speed | 400m/min |
| Maximum cutting frequency | 1300 times/min |
| Counting range | 6-52 sheets per stack |
| Counting accuracy | ±0 sheet |
| Maximum counting speed | 60 layers/min |
| Cover size (width) | 680mm x 1080mm |
| Cover size (circumference) | 255mm x 600mm |
| Cover paper weight | 70-300g/m² |
| Max. cover feeding speed | ≤60 sheets/min |
| Stitching head brand | Hohner (Germany) |
| Wire gauge | 26#-28# |
| Max. binding thickness | ≤6mm |
| Binding size (width) | 680mm x 1080mm |
| Binding size (circumference) | 255mm x 600mm |
| Max. stitching speed | 60 cycles/min |
| Folding size (unfolded) | 255mm-600mm |
| Folding size (folded) | 127.5mm-300mm |
| Max. folding speed | 60 cycles/min |
| Trimming size (cross) | 127.5mm-300mm |
| Max. trimming speed (cross) | 60 cycles/min |
| Trimming size (lengthwise) | 120mm-300mm |
| Max. slitting speed (lengthwise) | 60 cycles/min |
FAQs

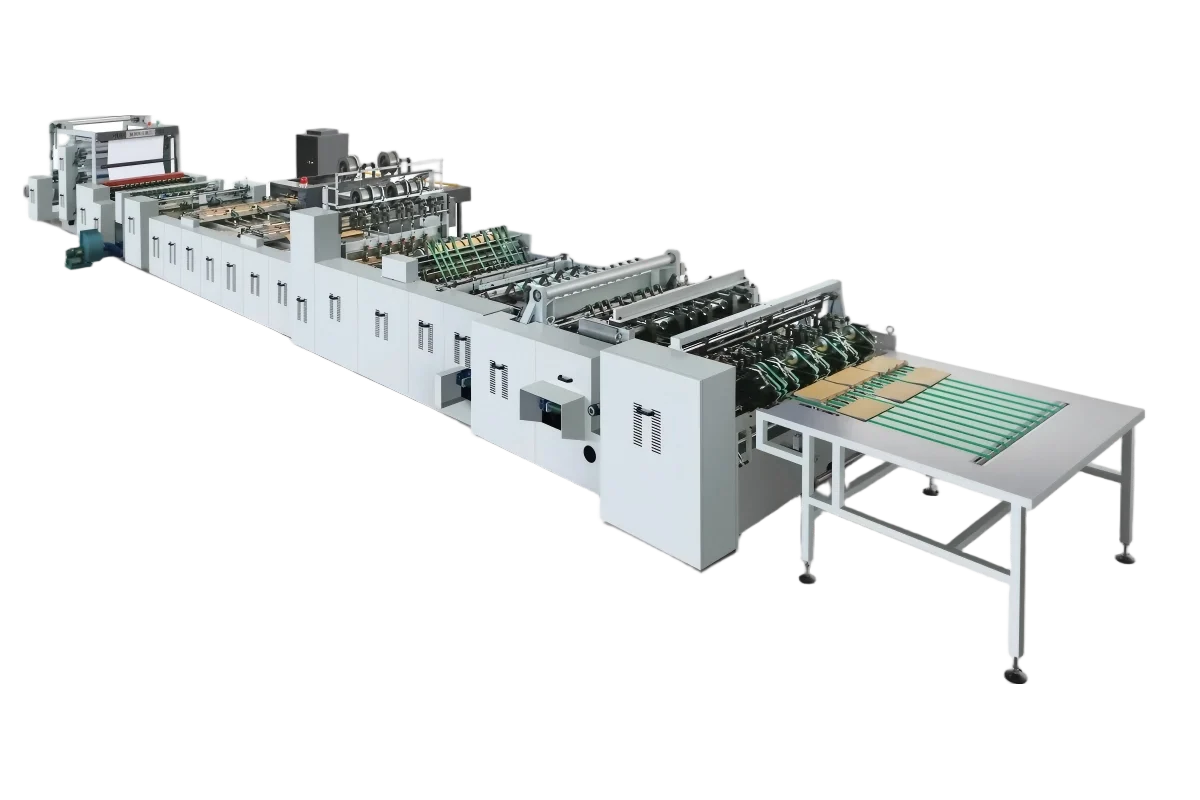

The HL-1080GD-2 is the double-sided two-color version, while the HL-1080GD supports double-sided three-color printing. The GD-2 does not include corner rounding.
The HL-1080GD-2 achieves a maximum printing speed of 400 m/min and a binding & trimming speed of 60 cycles/min.
This notebook making machine produces exercise books, notebooks, booklets, and other saddle-stitched paper products.
The machine uses Hohner (Germany) stitching heads with optional pre-pull wire feeding to reduce stitching head wear.
Manufactured by Lanxi Heli Machinery in Lanxi, Zhejiang, China. We offer competitive China factory direct pricing. Contact us for a quote.
