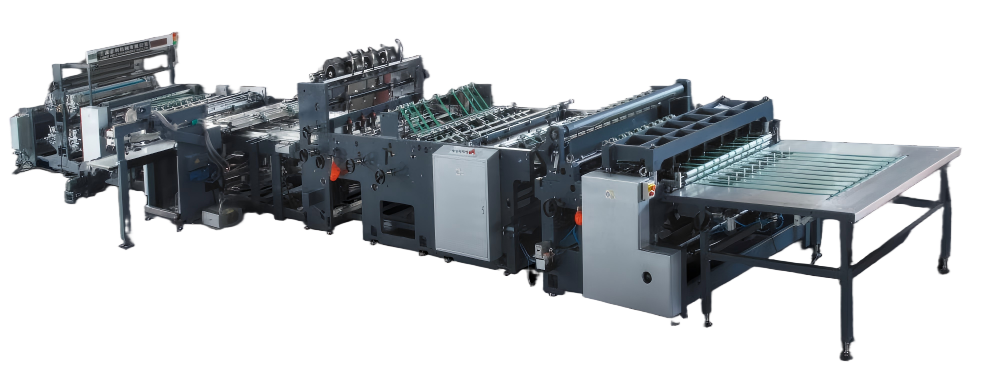

HL-1120B Roll paper flexo nails production line
HL-1120B Roll paper flexo nails production line
HL-1120B flexo wire stitching line adopts imported key parts and advanced servo control, completing full notebook making process with dual cover feeders for high-efficiency production.
- Reel width：680-1120mm
- Pinting speed：30-300m/min
- Max.EB.Making speed：45 times/min
- Printing-cuting length：300-760mm
Product Overview
HL-1120B Roll paper flexo nails production line is developdbyour company. it based on our flexo Ruing machine series and absorbed foreign machine, s advanced toechnology .After reel
release the web.double side Flexo printing.cross cut to single sheetcounting and stratifying.auto covering. wire stitching .folding .back planning .cross cuttirng .then. comes out the
finsihed product of notebook.two cover feeders can feed two covers at same tine or feed in turn.This line is ideal machine for producing wire side stitching notebpook The main key parts of this machine are imported from foreign specialist manufacturers; the electrical apparatus control system used the most advanced Fieldbus Control System and Non-axle servo control system. it ensured each part of the machine harmoniously.
Product Overview
| Reel width | 680-1120mm |
|---|---|
| Pinting speed | 30-300m/min |
| Max.EB.Making speed | 45 times/min |
| Printing-cuting length | 300-760mm |
| Cutting length | 250-450 mm |
| Counting and collecting | 6-50 sheets |
| Binging size | 125-225 mm |
| Total power | 32 kw |
| Net weight | 17000/17500kg |
