HL-1120BG-2F U type web flexo printing production line
HL-1120BG-2F U type web flexo printing production line

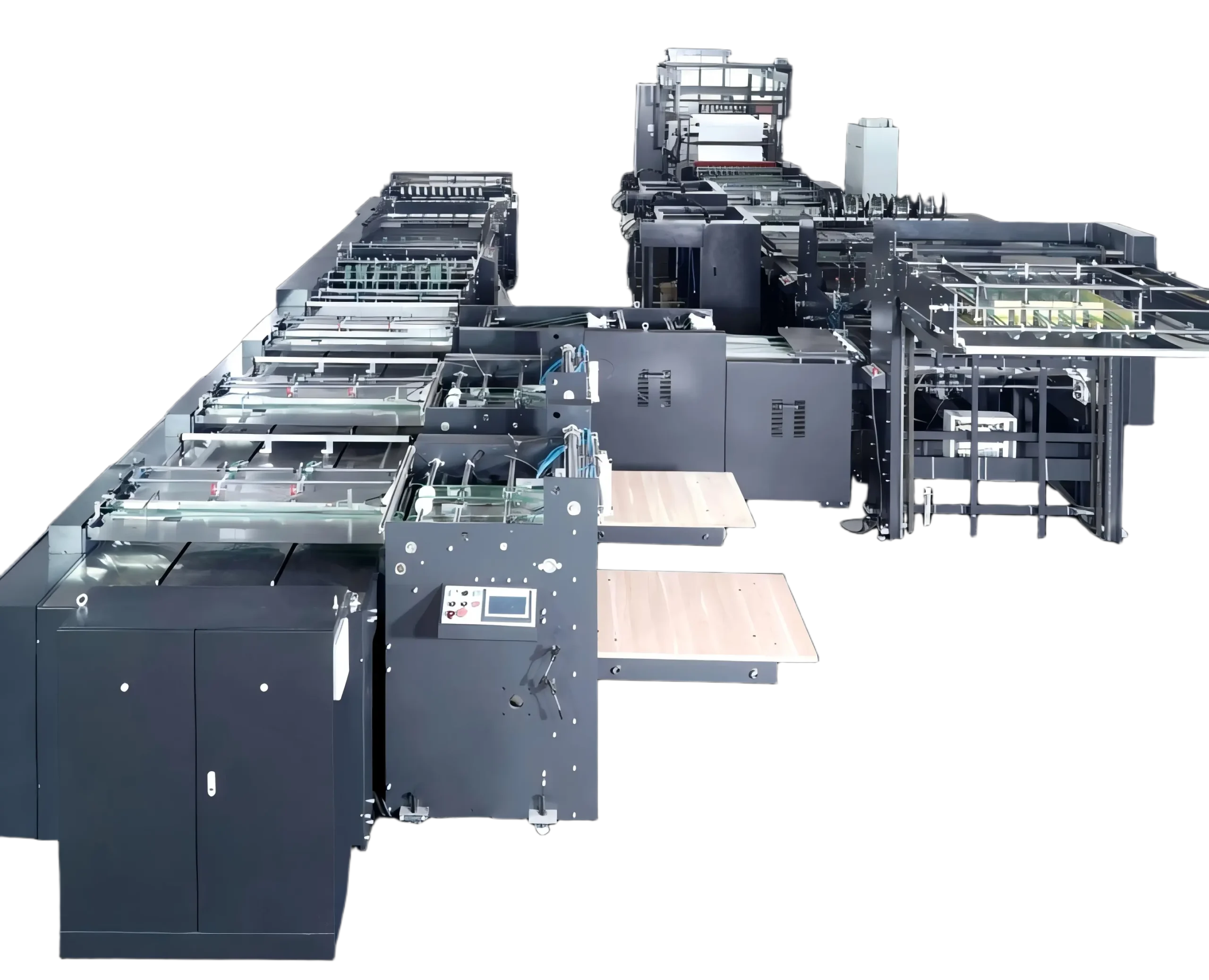

HL-1120BG-2F is our U-type web flexo line for wire side-stitched notebooks. It integrates unwinding, double-sided flexo printing, sheeting, dual cover feeding simultaneously or alternately, side stitching, spine folding, and final trimming. Imported key parts and fieldbus servo control ensure harmonious operation.
Product Overview
HL-1120BG-2F U type web flexo printing production line is developdbyour company. it based on our flexo Ruing machine series and absorbed foreign mhachine, s advanced technology.After reel-release the web .double side Flexo printing.cross cut to single sheet,counting and stratifying.auto covering. wire stitchiing .folding back planning .cross cutting .then. comes out the finsihed productofnotebook. two cover feeders can feed two covers at same tine or feedin turn. This line is ideal machine for producing wire side stitching notebook. The mainkey parts of this machine are imported from foreign specialist manufacturers; the electrica apparatus control system used the most advanced Fieldbus CControl System and Non-axle servo control system. it ensured each part of the machine harmoniously.
Product Overview
| Reel width | 680-1120 mm |
|---|---|
| Printing speed | 30-300m/min |
| Max.EB.Making speed | 45 times/min |
| printing-cutting length | 300-760 mm |
| Cutting length | 250-450 mm |
| Counting and collecting | 6-50 sheets |
| Binging size | 125-225 mm |
| Total power | 32 kw |
| Net weight | 17000/17500kg |
